Intuition-lc

Three-phase Electricity Monitoring - for larger properties

Product Features:

  • Allows monitoring of three-phase electricity usage across a property.

  • Displays individual readings for each phase.

  • Intuition online dashboard gives you access wherever you go, as long as you have internet access. Android and i-Phone apps  can give you access on-the-go.

  • Refreshes live readings at 12 second intervals, and a historical account of your usage, also telling you when you've improved your usage habits.

  • User configurable tariff settings allow the unit to calculate what you've spent over the course of a day, week, and month.
Intuition -LC

  • Provides graphs showing both historical and peak usages, allowing you to identify when you've been using the most energy - and potentially how to reduce this.

  • Large version available for bigger electrical supplies (up to 200A and 17mm diameter cables) - please consult your reseller for details.

OWL Intuition-lc Dashboard Screenshots

Click for larger images.

Intuition -LC screenshot 1Intuition -LC screenshot 2

Technical Specifications
Technical Specifications
Operating frequency:
Transmitter - 433MHz
Network OWL Gateway – 433MHz and 868MHz
Operating range up to 30m
12 second refresh rate (Electricity consumption data)
Transmitter battery life > 14 months
Sensor suitable to monitor cables rated up to 200A
Storage conditions: -25˚C to +65˚C
Relative humidity: 25% to 95% non-condensing
Operating temperature: 0˚C to 40˚C
Ingress protection: IP30


Standards Compliance
IEC 61010-1:2001(2nd Edition) / EN 61010-1:2001(2nd Edition)
ETSI EN 300 220-1 V2.1.1 (2006-04) / ETSI EN 300 220-2 V2.1.2 (2007-06)
ETSI EN 301 489-1 V1.8.1 (2008-04) / ETSI EN 301 489-3 V1.4.1 (2002-08)
R&TTE - WEEE Directive, RoHS, Battery Directive

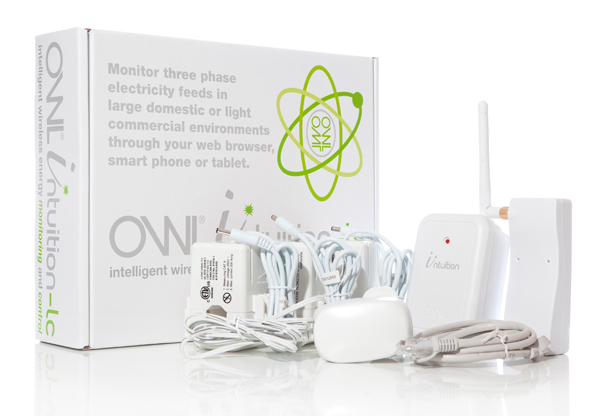

Includes
Network OWL Gateway with external antenna
Plug top power supply – 240V UK
Ethernet cable
3 channel Transmitter unit
3 x Standard Sensor clamps (< 10mm cable, < 72A)
3 x AA alkaline battery
Installation /User Manual
Brochures and Manuals
intuition -lc brochure Intuition -LC Manual
Brochure Installation Manual
